1221 Wheels

1221 Wheels 0331 AP3X APEX3.0

In stock
Construction
3-piece Forged
Diameters
18″ - 24″ + custom
Widths
8.5″ - 13″ + custom
Offset range
By request

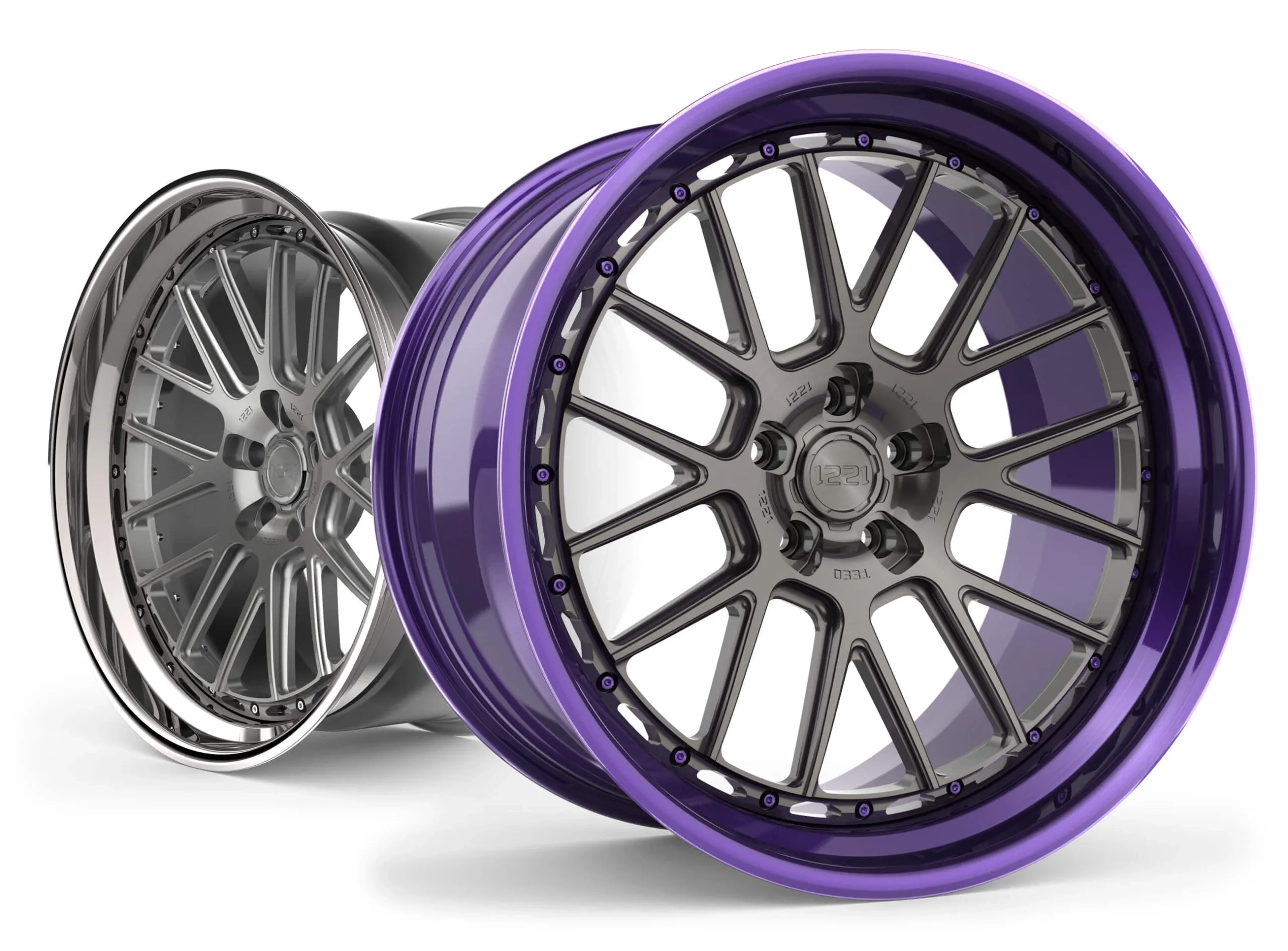

The 1221 Wheels 0331 AP3X APEX3.0 is a three-piece custom forged wheel combining the 0331 hub-cluster spoke architecture with AP3X X-Series technology. Features X-Series flange and rim pocketing for weight reduction, sConcave and dConcave profiles, and the 20|EX hardware system. Available in 18- to 24-inch diameters. Build to order at Hodoor Wheels.

  • Worldwide delivery in 5-7 days
  • Certification support
  • Free fitment check

Finishes

Full price, fitment check and delivery estimate within 24h.


Prefer messaging?EmailWhatsAppTelegram

03 /Specifications

Technical overview

This wheel is available in multiple fitments. Final size, offset and bolt pattern are to be confirmed with our manager.

01 / General

Construction
3-piece Forged
Material
Forged aluminum alloy
Manufacturing
CNC-machined aluminium
Origin
United States
Finish
Standard + custom finishes

02 / Available fitments

Diameters
18″ - 24″ + custom
Widths
8.5″ - 13″ + custom
Bolt patterns (PCD)
Vehicle-specific / by request
Offset (ET)
By request
Centre bore (CB)
Vehicle-specific

03 / Confirmed with quote

Brake clearance
Checked manually
Spacer requirement
Checked manually
Load rating
Confirmed for selected size
Weight
Confirmed for selected size

Need exact specs for your car?

We'll include the confirmed fitment, full spec sheet and available documentation with your quote.

04 /Finish

Pick yourfinish

Each finish is hand-applied and quality-checked before shipping. Custom finishes available on request add 2 weeks to lead time.

  • Solid Gloss Silver

  • Solid Gloss Gunmetal

  • Solid Gloss Black

Custom finish available

Looking for a specific colouror brushed gradient?

We can match the finish to your build and include it in your quote.

05 /Full specifications

Description

1221 Wheels 0331 AP3X APEX3.0 - Hub-Cluster Three-Piece X-Series with sConcave and dConcave Profiles

The Three-Spoke Hub-Cluster AP3X Platform with X-Series Pocketing

1221 Wheels 0331 AP3X APEX3.0 is a three-piece custom forged wheel that places three spokes in a hub-cluster arrangement - a geometry where the spokes emerge from a shared central mass rather than individual mounting points distributed around the hub disc. The APEX3.0 edition designation applies to the 0331 hub-cluster design machined from aerospace-grade 6061-T6 forged aluminum, combining X-Series flange technology with sConcave and dConcave barrel profiles that can both be specified on the same face geometry without altering the spoke tooling.

1221 Wheels 0331 AP3X APEX3.0 Design and Engineering: Hub-Cluster Spokes with Dual-Surface X-Series Pocketing

The 0331 hub-cluster spoke arrangement creates a visually distinct identity from conventional radial spoke layouts. Three spoke blades emerge from a shared central platform rather than separate hub-ring attachment points, allowing the cluster mass to serve both the structural load path and the visual anchor of the wheel. On the AP3X platform, this cluster geometry receives pockets on two independent surfaces: the assembly flange between the center disc and inner barrel, and the outer face of each spoke blade. The 20|EX bolt configuration replaces the standard 40-fastener assembly with twenty recessed titanium-finish bolts sealed by a machined center cap carrying the 1221 mark. The hub-cluster geometry was verified through Finite Element Analysis under sConcave and dConcave loading conditions across both standard and wide-arch fitment profiles.

1221 Wheels 0331 AP3X APEX3.0 Technical Specifications

Platform: AP3X three-piece forged with hub-cluster spoke geometry. Aluminum grade: 6061-T6 forged billet. Fastener assembly: 20|EX, 20 bolts with pocketing on both flange and blade faces. Profile options: sConcave or dConcave specified per order. Diameter: 18 to 24 inches. Width: 8.5 to 13 inches. Offset: custom per chassis. Supported PCD: 5x112, 5x114.3, 5x120, 5x130 and non-standard patterns. Titanium hardware upgrade available: 41 percent lighter than aluminum, 1221 laser marking. All configurations manufactured to order from City of Industry, California.

1221 Wheels 0331 AP3X APEX3.0 Available Finishes

The 0331 AP3X APEX3.0 is offered in a comprehensive palette spanning brushed, solid, and textured production methods. The brushed catalog includes Brushed Gloss and Brushed Matte variants in Clear, Titanium, Gunmetal, Smoke, Gold, Bronze, Red, Blue, and Purple. Solid options include Gloss and Matte variants in Silver, Black, Gunmetal, and Titanium. A Textured category rounds out the standard range with surface dimension not achievable through wet-coat methods. The three-piece construction allows the center disc, barrel sidewall, and lips to each carry independent finish specifications - enabling two-tone schemes where the hub-cluster face contrasts with the barrel in a complementary color. Custom paint matches and designer multi-tone arrangements are accepted at order.

1221 Wheels 0331 AP3X APEX3.0 Vehicle Fitment: Audi R8, Porsche GT3, McLaren, AMG GT

The hub-cluster architecture of the 0331 is particularly effective on mid-engine and rear-engine platforms where the open wheel arch frames the central cluster mass at the visual center of the wheel. Confirmed fitment platforms include the Audi R8 V10 Performance, Porsche 992 GT3 RS, McLaren 720S and 765LT, Mercedes-AMG GT 63S, Lamborghini Urus Performante, and BMW M3 CS G80. The three-piece AP3X barrel accommodates slammed and widebody builds where extreme negative offset values exceed monoblock engineering limits. All PCD configurations manufactured to order.

1221 Wheels 0331 AP3X APEX3.0 - Any Vehicle, Any Specification

The 0331 AP3X APEX3.0 is manufactured to order for any platform and any specification. Diameter, width, offset, PCD, center bore, barrel depth, and surface treatment are all set per build order. Non-standard configurations outside the catalog range are accepted and produced on the same AP3X tooling to the same quality standard. Provide your vehicle make, model, year, and target fitment parameters for a confirmed specification and build quote from the 1221 Wheels production team.

06 /Certification

Certification support

Documents differ by model and country. We check them for your exact wheel before you pay — and tell you upfront what's available.

  • 01

    Clear about what you get

    Every quote states exactly what you're getting: brand, model, finish and documents.

  • 02

    Documents checked before payment

    We confirm which certificates (TÜV, JWL, VIA) exist for your model and send them with the quote.

  • 03

    Fitment verified

    Offset, PCD and brake clearance checked for your exact car.

  • 04

    Registration in your country

    Tell us where the car is registered — we'll check what's needed and what we can provide.

1221 Wheels

About 1221 Wheels

1221 Wheels is an American forged wheel brand that seamlessly integrates timeless design with innovative technical details and superior manufacturing. Every wheel line is created to look fresh today and remain relevant for years to come, backed by quality that lasts.

Hodoor sources 1221 Wheels wheels through verified supplier channels and confirms fitment, finish and delivery before quoting.
