3D Design Type 3 Forged

3D Design Type 3 Forged - Lightweight Forged Monoblock for BMW Performance Builds

Japan-Made 5-Spoke Monoblock at Under 10 kg

3D Design Type 3 Forged is a forged monoblock wheel engineered around a single design goal: remove every gram that does not serve performance. The five-spoke layout extends continuously to the outer rim edge, reducing unsprung mass while maintaining structural integrity under track conditions. At 10Jx20, the Type 3 Forged achieves under 10 kg - a benchmark reached through Japanese precision forging and a deliberately simplified spoke geometry.

3D Design - Japan's BMW Specialist

3D Design has spent decades developing wheels and performance components exclusively for BMW platforms. Every product leaves their Japanese factory precision-engineered to BMW fitment tolerances, with available sizes developed through real-world testing on M and performance models. The Type 3 Forged represents the brand's approach to lightweight performance: less material, more precision.

3D Design Type 3 Forged Design and Engineering

Five spokes extend continuously from the center hub to the outer rim edge, eliminating the visual interruption typical of conventional designs. This spoke-to-rim continuity reduces aerodynamic drag and contributes directly to the sub-10 kg weight target at 10.0Jx20. The wheel face offers three distinct face profiles - Face-1, Face-2, and Face-3 - each with different concavity suited to various BMW fitment configurations.

3D Design Type 3 Forged Technical Specifications

Construction: Forged monoblock. Material: Forged aluminum alloy. Available diameters: 19-inch and 20-inch. Available widths: 8.5J to 10.0J. Bolt patterns: PCD 112mm (5-hole) and PCD 120mm (5-hole). Center bore: 72.5mm and 74mm (hub rings available). Weight: under 10 kg at 10.0Jx20. Finish options: Gloss Black, Brushed, Bi-color, Matte Black. Custom offsets available in 1 mm steps - contact us for details.

3D Design Type 3 Forged Available Finishes

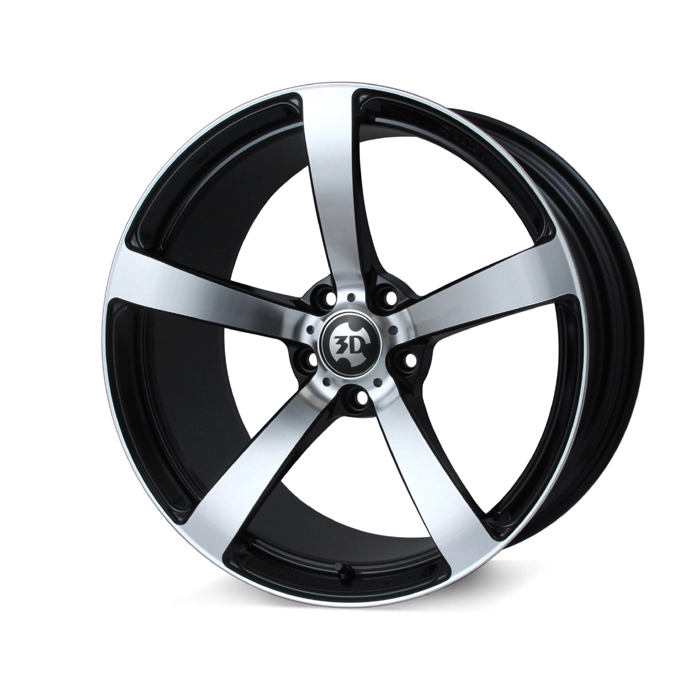

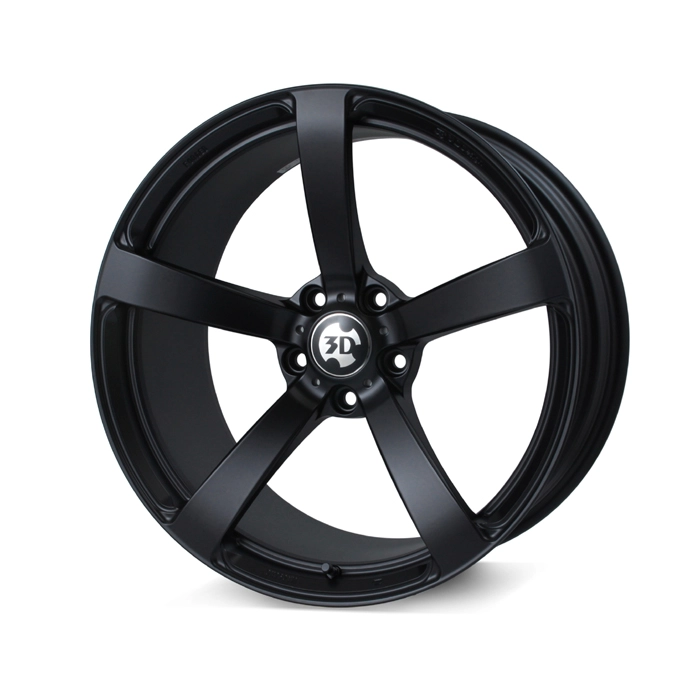

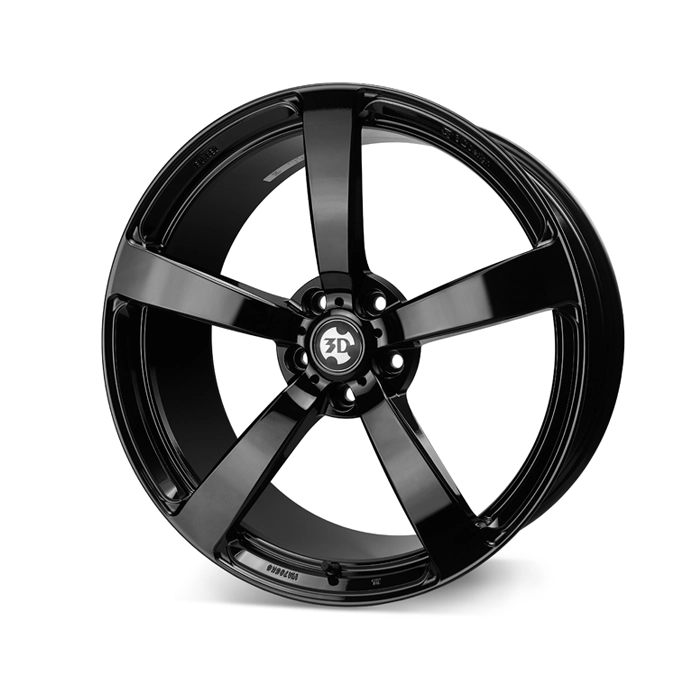

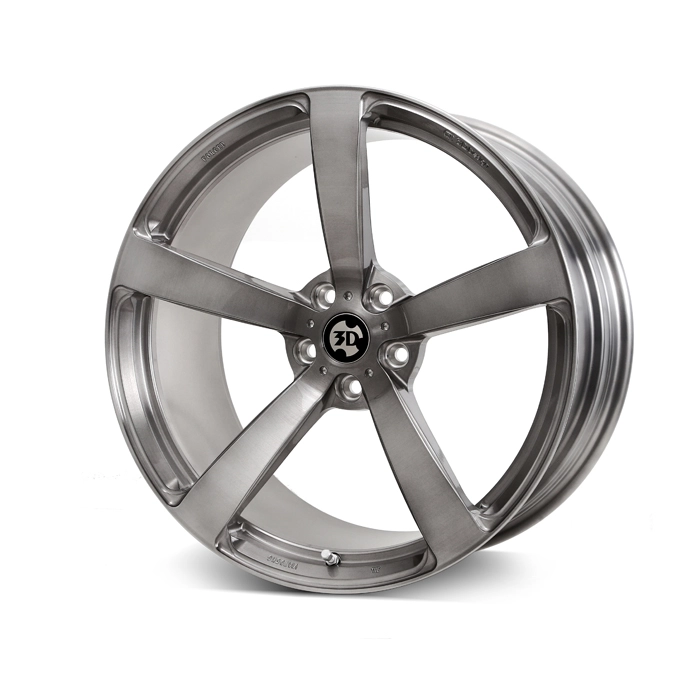

The Type 3 Forged is offered in four distinct finishes. Gloss Black delivers a high-gloss lacquered surface. Brushed provides a raw satin aluminum texture that highlights the forging grain. Bi-color combines a machined spoke face with a gloss black base for a contrasting two-tone effect. Matte Black offers a flat non-reflective surface suited to understated performance builds.

3D Design Type 3 Forged Vehicle Fitment: BMW M3, M4, M5, 3 Series, 4 Series, Z4

The Type 3 Forged fits a broad range of BMW platforms. Confirmed fitments include G80 M3, G82 M4, G26 4 Series Gran Coupe, G22 4 Series Coupe, G21 3 Series Touring, G20 3 Series Sedan, F80 M3, F82 M4, F87 M2, F10 M5, F06 6 Series Gran Coupe, F26 X4, F32 4 Series, F34 3 Series GT, F39 X2, F54 Clubman, and E89 Z4. Custom offset options are available for a wide range of BMW models beyond the standard catalog.

Any Vehicle, Any Specification

The Type 3 Forged can be built to order for any vehicle and any specification. Custom diameters, widths, and offsets are available beyond the standard catalog. Contact Hodoor Wheels for custom fitment specifications and lead times.
