Aimgain G2M-X

Aimgain G2M-X - 18 and 20-Inch 2-Piece Mesh Wheel for Suzuki Jimny JB74

Step Rim 2-Piece Mesh Dedicated to Suzuki Jimny JB74 with PCD 5/139.7

Aimgain G2M-X is a 2-piece mesh wheel available in 18 and 20 inches with PCD 5/139.7, purpose-built for the Suzuki Jimny JB74. The G2M-X brings Aimgain's two-piece mesh construction to the Jimny platform, offering bespoke sizing and deep disc-to-rim fitment not achievable with monoblock wheels. A cast aluminum mesh disc is paired with a step rim alumite barrel, supporting custom disc colour, rim colour, and centre cap combinations suited to the compact 4WD format of the Jimny.

Aimgain G2M-X Design and Engineering: Two-Piece Mesh Step Rim for Jimny

The G2M-X disc uses the same fine angular mesh spoke geometry as the G2M series, scaled to the offset and width requirements of the Suzuki Jimny JB74. All available sizes use a step rim configuration. At 20-inch, widths from 8.0J to 12.5J are available with Low Disk (note: Low Disk is being discontinued; confirm availability at order). Mid Disk configurations also available. Disc finishes include Matte Gunmeta, Gold, Semi Gloss Black, Matte Black, and Matte Gunmeta 18-inch in documented configurations, with the full standard, premium, and option colour range available to order. Rim options span Alumite, Black Alumite, Bronze Alumite, Black Mat Alumite, Bronze Mat Alumite, Cut Alumite, Black Cut Alumite, Bronze Cut Alumite, and Brushed. Pierce bolts in Chrome, Gold, and Black. JWL/VIA certified.

Aimgain G2M-X Technical Specifications

Construction: 2-piece cast aluminum alloy disc with alumite rim. Certification: JWL, VIA. Available diameters: 18 and 20 inches. 20-inch widths: 8.0J to 12.5J (step rim). 18-inch widths: 7.5J to 11.5J (step rim). PCD: 5/139.7. Hub bore: 108.5mm. Rim configuration: step rim at all sizes. Low Disk configuration: confirm availability at order. Contact Hodoor Wheels for the full inset table and current pricing.

Aimgain G2M-X Available Finishes

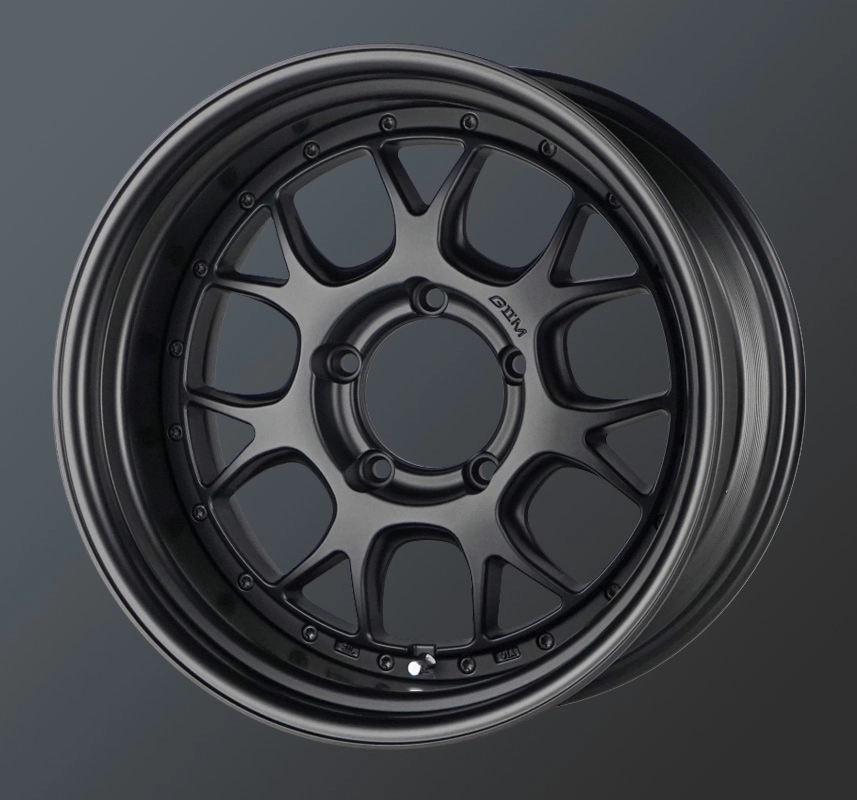

Standard disc colors: Black (BK), Black Metallic (BKM), Semi Gloss Black (HMB), Matte Black (MB), White (WH), Gold (GD), Matte Gunmeta (MG), Matte Bronze (MBZ). Premium disc colors: Hyper Silver (HS) and Hyper Black (HB). Option colors: White Nova Pearl (NW), Candy Gold (CGD), Hyper Red Clear (HRC), Eternal Blue Pearl (EB). Rim finishes: Alumite (D), Black Alumite, Bronze Alumite, Black Mat Alumite, Bronze Mat Alumite, Cut Alumite (F), Black Cut Alumite, Bronze Cut Alumite, Brushed (H). Contact Hodoor Wheels for the complete finish catalogue.

Aimgain G2M-X Vehicle Fitment: Suzuki Jimny JB74 (3rd Generation)

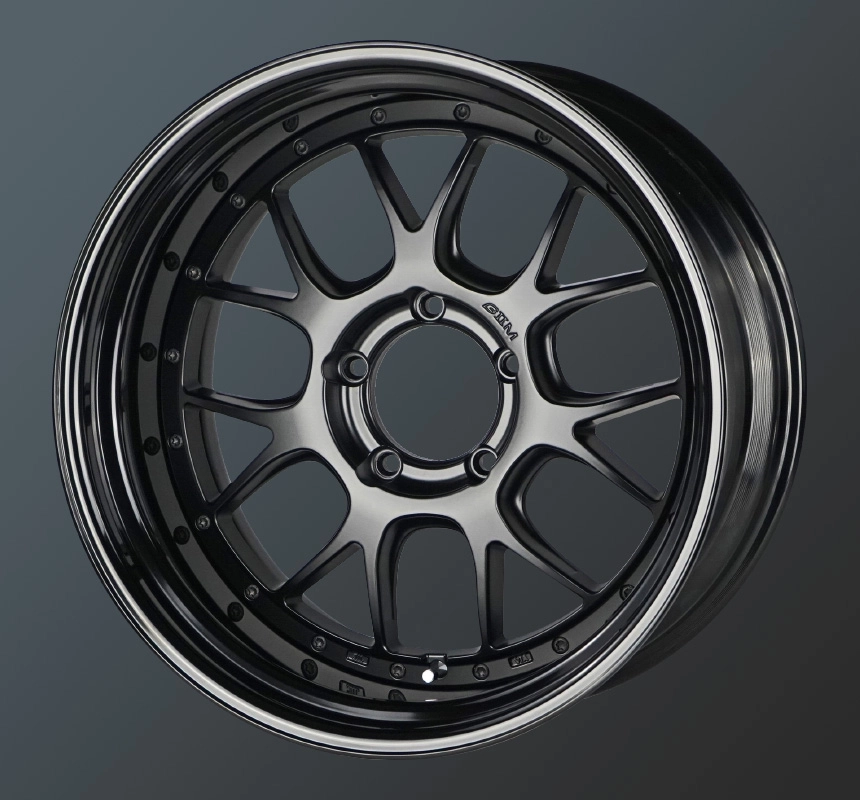

Dedicated fitment for Suzuki Jimny JB74 (2018-onwards) with PCD 5/139.7 and hub bore 108.5mm. Documented configurations: 20x8.0J inset 13 to 38 Mid Disk in Matte Gunmeta and Gold, 20x8.0J inset 1 Low Disk in Semi Gloss Black. The 18-inch step rim at 18x8.0J inset 30 targets stock fender Jimny builds without arch modification. Contact Hodoor Wheels with your trim level and desired tyre size to confirm the optimal inset and rim depth.

Aimgain G2M-X - Any Vehicle, Any Specification

The G2M-X is available in 18 and 20 inches for the Suzuki Jimny JB74 (PCD 5/139.7). Contact Hodoor Wheels at [email protected] or via WhatsApp to place a custom order. JWL/VIA certification is maintained across all available configurations.
