AL13 Wheels D002 (Monoblock)

AL 13 D002 (Monoblock) - Single-Piece Construction, Zero Joints, Zero Compromise

Angular 5-Spoke Face Machined from Solid Billet - No Assembly Hardware, No Maintenance Schedule

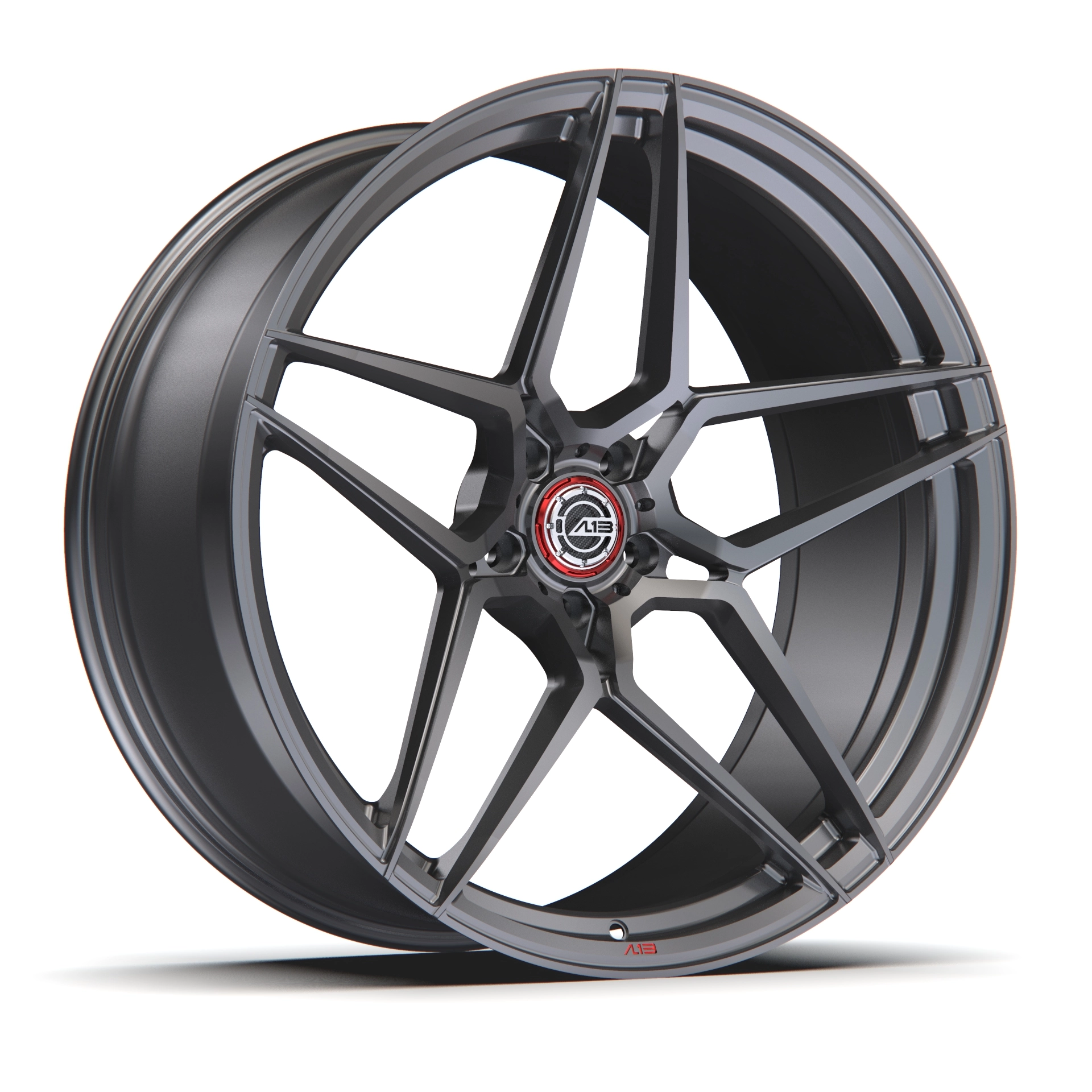

AL 13 D002 (Monoblock) is a single-piece forged aluminium wheel in which the face, spokes, and barrel are machined from one continuous billet blank. There are no bolted barrel joints, no sealing rings, and no assembly hardware anywhere in the structure. Because the entire wheel is one piece of metal, the three failure modes common to multi-piece construction are eliminated by design: fatigue cracking at barrel-to-face junctions cannot develop where no junction exists, bolt backlash under cyclic loading is not possible when there are no bolts, and the periodic retorquing that multi-piece wheels technically require is simply not part of the ownership equation. D002 (Monoblock) delivers AL 13's angular face geometry in its most structurally direct form.

AL 13 D002 (Monoblock) Design and Engineering

Monoblock production is a subtractive process: CNC machining removes material from a solid forged billet rather than joining separate components together. The angular 5-spoke geometry of the D002 face is cut directly into the blank, with spokes, face profile, and barrel wall all remaining continuous from a single piece of forged aluminium. No weld lines, no adhesive bonds, no assembly seams. The D002 angular face design translates particularly well to monoblock construction because the visual cleanliness of the spoke geometry is uninterrupted by the barrel-edge seam that runs around the perimeter of a 2-piece or 3-piece wheel. The chamfered edges that define the D002's sharp, architectural character are produced entirely by the cutting tool, resulting in consistent geometry across the full diameter without the tolerance variation introduced by barrel-to-face assembly.

AL 13 D002 (Monoblock) Technical Specifications

AL 13 D002 (Monoblock) is one component. A comparable 3-piece wheel uses a separate face, outer barrel, and inner barrel connected by 30 to 50 fasteners with matching sealing rings; the monoblock format reduces this to zero barrel bolts and zero sealing surfaces. Wall thickness across the barrel section is determined by CNC programming rather than constrained by the geometry of a spun or rolled barrel shell, allowing material to be positioned where load paths require it and removed where they do not. The D002 (Monoblock) is available in diameters from 19 to 24 inches with widths from 8.5J to 12J. Each wheel is produced to order with custom PCD, offset, and centre bore specifications confirmed against the customer's vehicle.

AL 13 D002 (Monoblock) Available Finishes

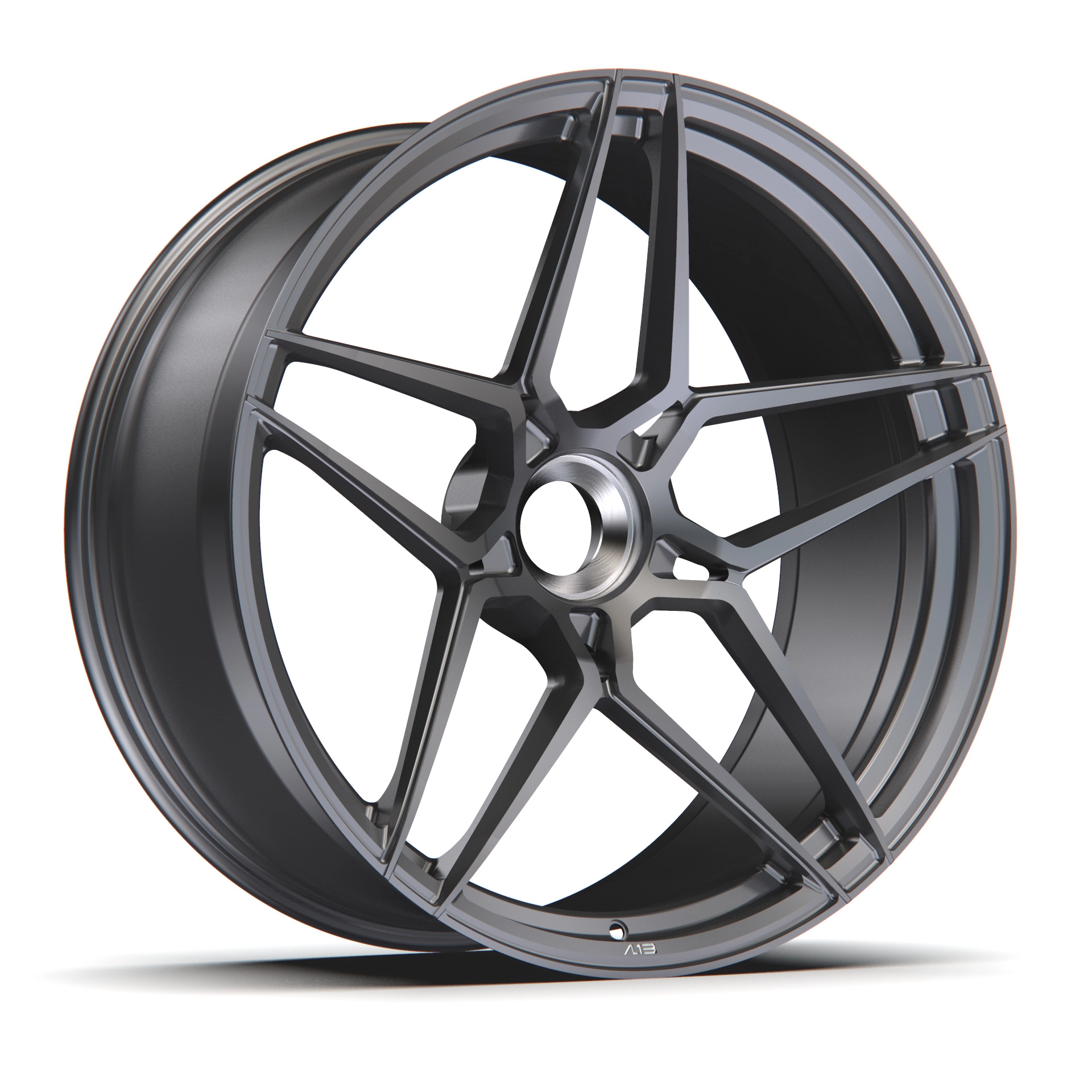

The monoblock surface presents an uninterrupted CNC-machined texture across both face and barrel before any finish is applied — no transitions between machined sections, no seam lines where the coating must bridge a joint. Forged Graphite is the most specified finish for the D002 angular face: the dark tone amplifies the shadow depth in the spoke channels and gives the wheel visual mass that suits the scale of performance sedans. Satin Forged Silver preserves the machined aluminium character while offering softer contrast against dark bodywork. Both finishes benefit directly from the monoblock surface: coverage is applied to one continuous form rather than across an assembled joint. Additional finish options are available on request.

AL 13 D002 (Monoblock) Vehicle Fitment

D002 (Monoblock) is most frequently specified for high-performance daily drivers where structural reliability and low maintenance overhead matter alongside fitment accuracy. BMW M5 Competition in F90 and G90 generations, Audi RS7 Sportback, Mercedes-AMG E63 S in both saloon and estate body styles, and Porsche Panamera GTS are confirmed fitment platforms, typically specified in 21-inch diameter at widths between 9.5J and 11J. For these vehicles, driven on public roads year-round with periodic track use, the monoblock format removes the requirement for scheduled hardware inspection that multi-piece wheels technically carry. There is no barrel bolt torque schedule to maintain, no sealant integrity to monitor, and no risk of progressive joint movement under sustained high-speed loading. AL 13 provides offset and centre bore specifications for all major European and North American performance platforms.

AL 13 D002 (Monoblock) - Any Vehicle, Any Specification

Custom diameters, widths, offsets, and centre bore configurations are available across the full D002 (Monoblock) range. AL 13 produces each wheel to order, allowing precise fitment for standard and modified suspension setups without spacers or hub adapters. Zero maintenance construction for street and track use. Contact AL 13 directly to specify your vehicle's requirements.
