AL13 Wheels D011 (3-Piece)

AL 13 D011 (3-Piece) - Deep Concave Architecture Built for Width and Stance

Independent face, barrel, and lip configuration for concave depth that monoblock cannot reach

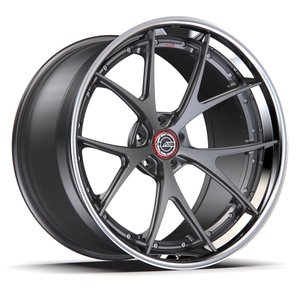

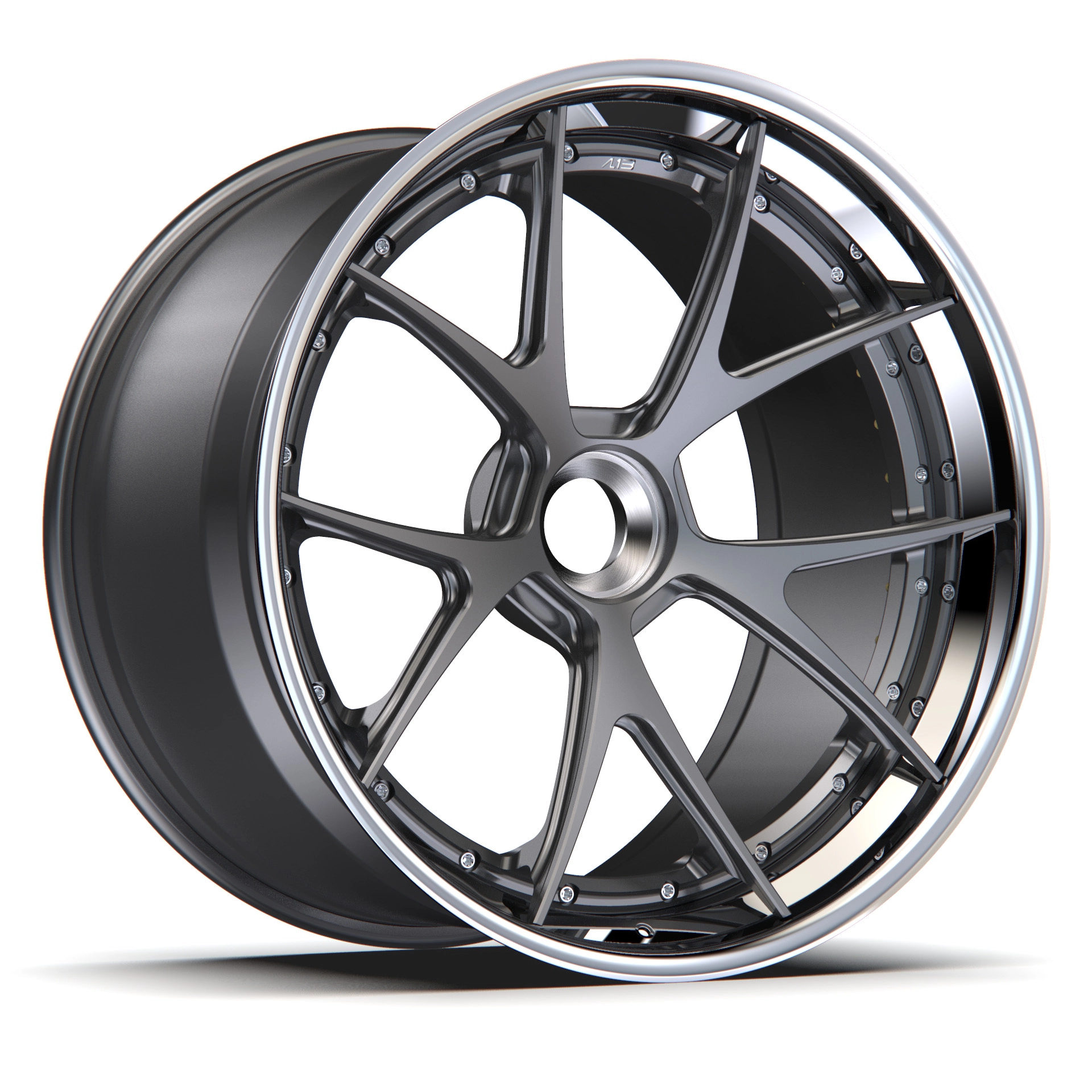

AL 13 D011 (3-Piece) is a three-piece forged wheel engineered to deliver concave profiles that monoblock and two-piece construction physically cannot achieve. By separating the face, inner barrel, and outer lip into three independently machined components, the D011 allows face angle, barrel width, and lip depth to be specified independently - making it the preferred choice for stance builds and wide-body fitments where extreme dish and concave depth are the primary objectives.

AL 13 D011 (3-Piece) Design and Engineering

The defining feature of the D011 (3-Piece) is the ability to pair a single face design with multiple barrel widths and concave depths. In a monoblock wheel, the face geometry is fixed relative to the barrel - increasing concave depth means compromising other dimensions. With three-piece architecture, the face-to-barrel angle is adjusted by selecting the appropriate inner barrel depth, while the outer lip adds a separate dimensional layer. This means the same D011 face can be built at 9-inch width with moderate concave or at 13-inch width with extreme concave - without redesigning the face. The result is a wheel that fits the build specification first and the catalogue second.

AL 13 D011 (3-Piece) Technical Specifications

AL 13 D011 (3-Piece) is produced in diameter sizes from 20 to 24 inches with width specifications from 9.0 to 13.0 inches. Offset range spans from ET10 to ET50, specified independently of width and concave depth. The face is forged from 6061-T6 aluminium and machined to the selected concave profile. Inner barrel and outer lip are machined separately and assembled using aerospace-grade hardware. Each set is balanced to within 2 grams before dispatch. Weight varies by configuration; a 22x10.5 example builds at approximately 13.5 kg per wheel. Concave depth and wheel width are confirmed at order stage before offset and diameter are finalised.

AL 13 D011 (3-Piece) Available Finishes

Because the face, inner barrel, and outer lip are separate physical components, each part can be finished independently. This opens multi-tone configurations that a monoblock wheel cannot replicate. Popular combinations include Gloss Black face with Polished outer lip for a clean contrast build, Brushed Silver face with Satin Black inner barrel and machined lip for a layered tone, and Custom Colour face with Polished hardware for a detail-focused build matched to vehicle paint. Single-colour options are available across all components. Custom powder coat and anodised colours can be matched to vehicle body colour on request.

AL 13 D011 (3-Piece) Vehicle Fitment

The D011 (3-Piece) is built primarily for stance and wide-body applications where wheel width and concave depth must be maximised. Fitment data covers Lamborghini Urus running 23x11 fronts and 23x13 rears under wide-body arch extensions, Porsche Cayenne GTS on 22x11 with aggressive negative offset for flush fitment at the arch, BMW X5M Competition on 22x10.5 fronts and 22x11.5 rears for a levelled wide stance, and Mercedes GLE 63 AMG S on 22x11 with custom offset calculated against the factory air suspension geometry. For each application, offset and concave depth are calculated against vehicle-specific hub and arch measurements rather than selected from a fixed range.

AL 13 D011 (3-Piece) - Any Vehicle, Any Specification

Custom sizes are available beyond the standard production range. Begin your order by specifying concave depth and wheel width first - these two dimensions drive the barrel and lip geometry and determine the overall configuration. Diameter and offset are confirmed against your specific vehicle and tyre combination once the primary dimensions are set. AL 13 handles the engineering from that point. All D011 (3-Piece) sets are built to order with a lead time confirmed at time of specification.
