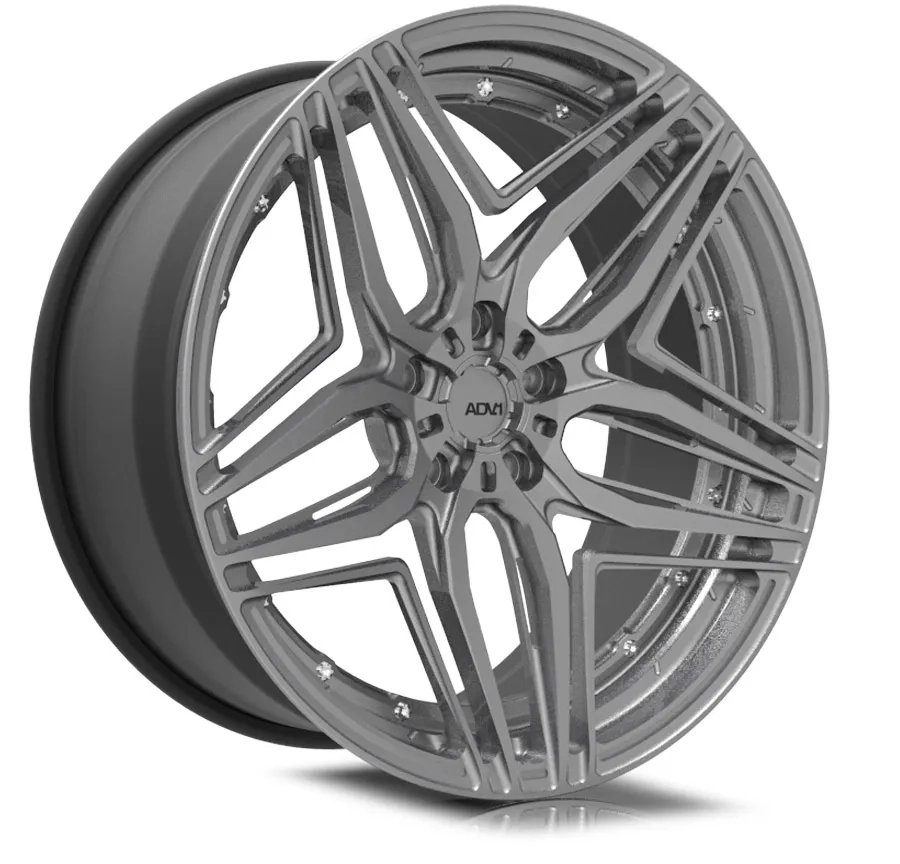

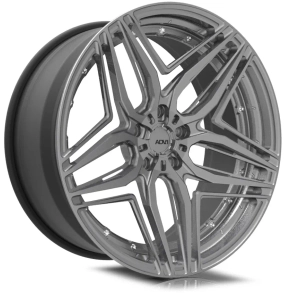

ADV.1 ADV005F M.V2 - Wide-Face Five-Spoke Architecture in Advanced Series

Sculptural Volume and Assertive Presence Through Full-Width Spoke Engineering

ADV.1 ADV005F M.V2 Advanced Series is a 2-piece forged wheel whose wide-face five-spoke form factor delivers commanding visual mass and a substantially greater spoke surface area per arm than narrow or split spoke counterparts, making it the Advanced Series selection for builds where the wheel face itself anchors the vehicle's visual identity.

ADV.1 ADV005F M.V2: Manufacturing and Construction Basis

Each ADV005F M.V2 is produced at ADV.1's Carson, California facility from 6061 T6 forged aluminum billet. The center disc is machined from a single forged blank and mated to a separately produced outer step-lip barrel secured with aircraft-specification fasteners, a two-component architecture that allows the barrel to be rebuilt to a new diameter or width specification if the vehicle configuration changes after initial delivery.

ADV.1 ADV005F M.V2 Design and Engineering: Volume Spoke Geometry and Structural Surface Area

The ADV005F M.V2 Advanced Series is defined by five spokes with substantially greater chord width at each arm's midpoint relative to the window aperture between arms. This proportion inversion - more face than gap - produces a visual surface associated with factory motorsport wheels and flagship OEM fitments on large-displacement touring cars. The spoke section carries material at the outer face to a depth that provides meaningful resistance to lateral bending, a property relevant on high-mass vehicles with significant unsprung weight at each corner.

The window openings flanking each wide spoke are shaped through CAD surfacing to produce a smooth boundary radius from spoke edge to outer barrel wall. This radius accomplishes two objectives: it eliminates the stress concentration that a sharp re-entrant corner would create at the pocket entrance, and it generates the shadow depth that defines the wheel's visual dimension when lit at oblique angles. The pocket floor is machined flat, creating a defined ledge behind each spoke that contributes to the layered appearance at straight-on viewing angles.

At the outer step-lip junction, each spoke foot broadens to match the barrel shoulder width. This foot flare increases the bonding area between center and outer components at the diameter where the maximum bending moment from cornering loads acts, reducing deflection at the rim seat under combined lateral and vertical loading. The step-lip barrel depth is independently calibrated per order to achieve the specified concave dish without altering the center disc geometry or spoke proportions.

Finish treatment on the ADV005F M.V2 benefits directly from the wide spoke surface area. Brushed finishes develop longer, more consistent grain lines on wider faces. Polished surfaces deliver a larger reflective area per arm, producing a brighter visual return at shallow viewing angles. Matte and semi-gloss applications carry more evenly across the face because the larger surface is less susceptible to pooling or edge shadowing during application.

ADV.1 ADV005F M.V2 Technical Specifications

The ADV005F M.V2 is available in 18 to 22 inches diameter with widths from 8.5 to 13.5 inches. Construction is 2-piece forged with a step-lip outer barrel. Base material is forged aluminum alloy. Hardware is standard titanium, with exposed, 50/50, or hidden configurations. TPMS compatible. Manufactured to satisfy German TUV structural requirements. Offset and GAWR engineered to each vehicle's specification.

ADV.1 ADV005F M.V2 Available Finishes

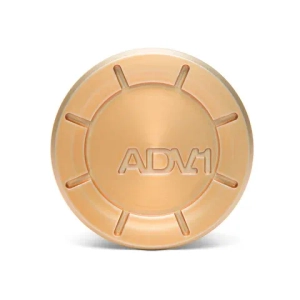

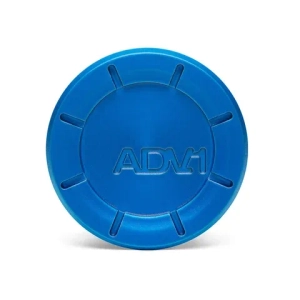

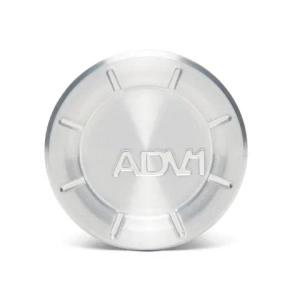

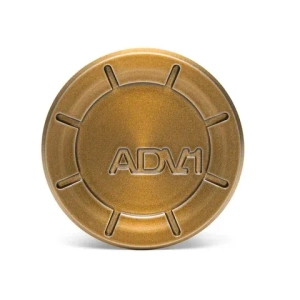

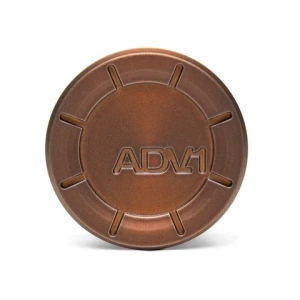

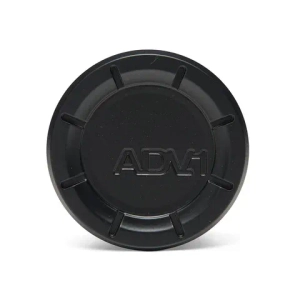

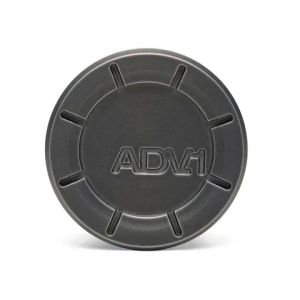

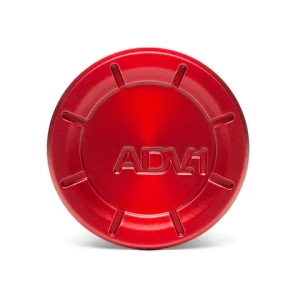

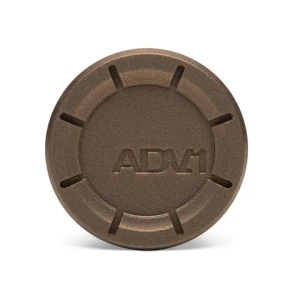

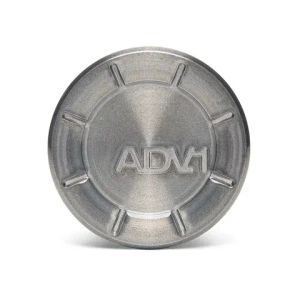

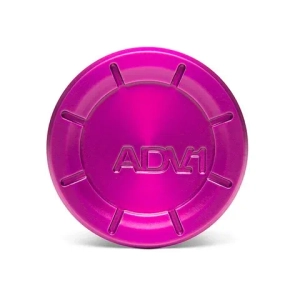

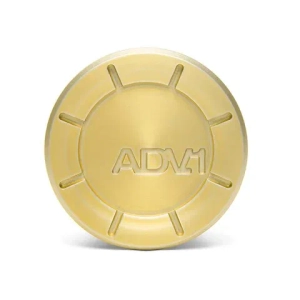

Standard finishes include Gloss Silver, Matte Silver, Gloss Black, Matte Black, Gloss Bronze, Matte Bronze, Gloss Graphite, and Matte Graphite. Brushed options in Aluminum, Gunmetal, Liquid Smoke, Man Bronze, Champion Gold, Rose Gold, Cognac, Blue, Tiffany Blue, Red, and Rose Pink. Polished options: Gloss Polished Aluminum, Matte Polished Aluminum, Gloss Polished Gunmetal, and Gloss Polished Man Bronze.

ADV.1 ADV005F M.V2 Vehicle Fitment: Porsche, Audi, BMW and Grand Touring Platforms

The ADV005F M.V2 has been specified for Porsche 911 Turbo S and Carrera 4S, Audi R8 V10 and RS7, BMW M3 Competition and M4 Competition, Maserati GranTurismo and GranCabrio, Jaguar F-Type R, Bentley Continental GT V8, and other grand touring and performance vehicles. The wide-face spoke format scales proportionally from 18-inch sport sedan fitments through 22-inch grand coupe configurations. Every wheel is individually engineered to the vehicle's exact specifications.

ADV.1 ADV005F M.V2 - Any Vehicle, Any Specification

The ADV005F M.V2 can be ordered for any vehicle in any diameter, width, offset, PCD, center bore, and finish. Contact Hodoor Wheels with your vehicle make, model, and year for a confirmed fitment specification and build quote. Reach us at [email protected] or via WhatsApp at +44 748 881 8747.
