ADV.1 ADV05 M.V2 - Seven-Spoke Fan Layout in Advanced Series

Continuous Spoke Face Sweep and Brake Aperture Optimization Across Seven Equal Arms

ADV.1 ADV05 M.V2 Advanced Series is a 2-piece forged step-lip wheel centered on a seven-arm layout where each spoke presents an uninterrupted face from hub flange to barrel contact, producing a sweep-pattern face geometry that distributes visual weight and structural load across the disc in equal 51.4-degree increments.

ADV.1 ADV05 M.V2: Forged Center and Step-Lip Barrel Assembly

The ADV05 M.V2 center disc is machined from a single forged aluminum billet at ADV.1's California facility, with seven spoke blanks roughed to shape and then precision-finished to final face geometry in a single setup. The outer barrel is produced separately and joined to the disc with ADV.1's standard assembly fasteners at a junction diameter calculated to isolate wheel flex from disc deformation. Barrel depth is specified per order, allowing the degree of concave dish to be set at the time of manufacture without modifying the spoke geometry.

ADV.1 ADV05 M.V2 Design and Engineering: Seven-Arm Aperture Efficiency and Sweep Profile

The seven-spoke count of the ADV05 M.V2 produces seven equal apertures around the disc face, each subtending approximately 51 degrees of arc at the outer barrel. This aperture distribution is particularly effective for brake thermal management: seven equally spaced openings create a more uniform circumferential airflow path across the rotor surface than five or six apertures, where larger arc gaps between spokes create localized high-velocity zones and narrower gaps create low-velocity zones around the same revolution.

The spoke face of each arm is machined as a ruled surface - a developable geometry where every cross-section perpendicular to the spoke centerline is a straight line. This rule-surface profile allows the spoke to taper from a fuller section at the hub shoulder, where torsional stiffness and fastener proximity require material, to a lighter section at the barrel contact, where the primary load is compressive rather than bending. The taper angle is derived from ADV.1's spoke section analysis for the specified diameter and width, not applied cosmetically.

The aperture between adjacent spokes on the ADV05 M.V2 is widest at the outermost diameter and narrows progressively toward the hub center, a geometry that results from the seven arms converging at a single hub boss rather than branching from separate anchor points. This convergence creates a natural frame around the center cap area that draws visual attention toward the hub - a proportional quality associated with multi-spoke sport wheels where the hub area anchors the design rather than disappearing into the disc plane.

In the step-lip configuration, the disc face retreats axially from the outer rim shoulder, creating the concave impression. On the ADV05 M.V2, the axial retreat distance is calibrated so that the spoke surfaces are fully visible within the outer rim boundary when viewed from a three-quarter perspective - the spoke faces do not disappear behind the rim flange at normal road height viewing angles, maintaining the seven-spoke visual identity regardless of dish depth.

ADV.1 ADV05 M.V2 Technical Specifications

The ADV05 M.V2 is a 2-piece forged step-lip wheel available in 18 to 22 inches with widths from 8.5 to 13.5 inches. Material is forged aluminum alloy. Spoke count: 7. Offset engineered per vehicle for correct fender clearance. Hardware is standard titanium, with exposed, 50/50, or hidden configurations. TPMS compatible. Conforms to German TUV structural requirements. Custom diameters and widths available to order.

ADV.1 ADV05 M.V2 Available Finishes

Standard finishes include Gloss Silver, Matte Silver, Gloss Black, Matte Black, Gloss Bronze, Matte Bronze, Gloss Graphite, and Matte Graphite. Brushed options in Aluminum, Gunmetal, Liquid Smoke, Man Bronze, Champion Gold, Rose Gold, Cognac, Blue, Tiffany Blue, Red, and Rose Pink. Polished options: Gloss Polished Aluminum, Matte Polished Aluminum, Gloss Polished Gunmetal, and Gloss Polished Man Bronze.

ADV.1 ADV05 M.V2 Vehicle Fitment: Tesla, Ferrari, Mercedes and Luxury Platforms

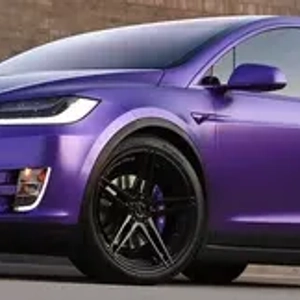

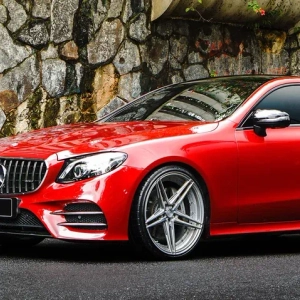

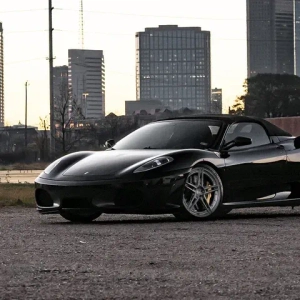

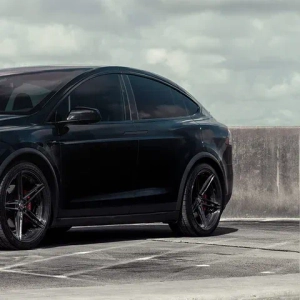

The ADV05 M.V2 Advanced Series has been specified for Tesla Model X and Model S, Ferrari F430 Spider and California, Mercedes-Benz E-Class C238, Bentley Flying Spur and Mulsanne, Porsche Panamera Turbo S, and Aston Martin DB11. The seven-arm sweep profile is particularly suited to vehicles with long fender arches where the spoke pattern needs to be readable at low viewing angles without relying on extreme concave depth. Every wheel is individually engineered to the vehicle's exact specifications.

ADV.1 ADV05 M.V2 - Any Vehicle, Any Specification

The ADV05 M.V2 can be manufactured for any vehicle and any specification. Whether the project is a classic, a modern supercar, or a performance SUV, we can produce the ADV05 M.V2 in any diameter, width, offset, PCD, center bore, and finish. Contact us with vehicle make, model, and year for a confirmed fitment and build quote.
