ADV.1 ADV10.0 - M.V2

ADV.1 ADV10.0 M.V2 - Split Ten-Spoke Concave Architecture in Advanced Series

Paired Rib Geometry and Fan-Section Engineering for Exotic and High-Performance Platforms

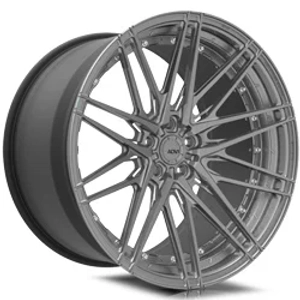

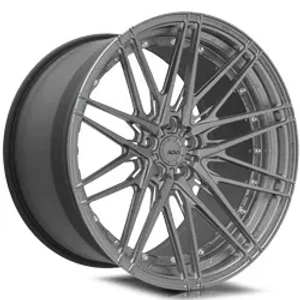

ADV.1 ADV10.0 M.V2 Advanced Series is a 2-piece forged wheel combining a ten-spoke layout with a split rib pair arrangement, where each of five primary arms divides into two converging sections before reaching the outer barrel, producing a fan-patterned face that carries both structural redundancy and visual layering beyond what a solid ten-spoke achieves.

ADV.1 ADV10.0 M.V2: Two-Piece Forged Step-Lip Construction

The ADV10.0 M.V2 center disc and outer step-lip barrel are produced as separate forged components at ADV.1's Carson, California facility, then assembled with aircraft-grade fasteners at a joining diameter selected to minimize bending deflection at the rim seat under combined lateral and radial loading. This separation of center and barrel allows the lip projection to be configured independently of the spoke disc geometry - each order is built to a precise lip depth calibrated to the buyer's vehicle offset and fender clearance requirement.

ADV.1 ADV10.0 M.V2 Design and Engineering: Fan-Spoke Pair Convergence and Concave Calibration

The ADV10.0 M.V2's defining geometry begins at five hub-adjacent spoke roots and progresses outward as each root separates into a diverging pair of ribs. The angular spread of each pair is fixed by ADV.1's CAD programme at a value derived from the wheel diameter and the desired visual ratio of spoke-to-aperture at the rim edge. This computed divergence ensures the rib tips arrive at the outer barrel at a spacing proportional to the barrel's circumference, so the ten contact points are evenly distributed regardless of wheel diameter.

Between each converging pair, and between adjacent pairs, the disc face is relieved to produce the aperture geometry. The aperture between the two ribs of a single pair is narrower than the aperture between adjacent pairs, creating two distinct void scales on the face: tight intra-pair gaps that read as fine detail from close range, and wider inter-pair openings that define the wheel's overall visual rhythm from distance. This dual-scale aperture pattern is the principal visual differentiator of the ADV10.0 M.V2 relative to a uniform ten-spoke layout.

The concave depth of the ADV10.0 M.V2 is produced through the step-lip barrel geometry rather than the disc profile. The disc face sits at a consistent axial position relative to the hub mounting surface; the outer barrel extends forward of the disc edge by a measured amount that becomes the visible concave depth. ADV.1 calibrates this depth per order based on the vehicle's caliper projection, fender geometry, and the buyer's aesthetic preference, allowing the same spoke disc to produce wheels appearing shallow or deeply concave without a geometry change.

The intra-pair gap on the ADV10.0 M.V2 is milled to a consistent width across all five pairs on a given wheel. Maintaining uniform gap width across all ten rib termination points at the barrel requires tight CNC positional tolerances throughout the machining sequence, as any eccentricity in the forged disc blank becomes amplified at the outer radius. ADV.1's single-setup machining protocol for the ADV10.0 M.V2 center disc controls this concentricity through a dedicated fixture design that references the hub bore rather than the disc outer perimeter, eliminating any eccentricity inherited from forging draft angles.

ADV.1 ADV10.0 M.V2 Technical Specifications

The ADV10.0 M.V2 is a 2-piece forged step-lip wheel available in 18 to 22 inches with widths from 8.5 to 13.5 inches. Material is forged aluminum alloy. Offset engineered per vehicle for correct fender line fitment. Hardware is standard titanium, selectable from exposed, 50/50, or hidden configurations. TPMS compatible. Conforms to German TUV structural requirements. Custom diameters and widths available to order.

ADV.1 ADV10.0 M.V2 Available Finishes

Standard finishes include Gloss Silver, Matte Silver, Gloss Black, Matte Black, Gloss Bronze, Matte Bronze, Gloss Graphite, and Matte Graphite. Brushed options in Aluminum, Gunmetal, Liquid Smoke, Man Bronze, Champion Gold, Rose Gold, Cognac, Blue, Tiffany Blue, Red, and Rose Pink. Polished options: Gloss Polished Aluminum, Matte Polished Aluminum, Gloss Polished Gunmetal, and Gloss Polished Man Bronze.

ADV.1 ADV10.0 M.V2 Vehicle Fitment: Porsche, BMW, Audi, Aston Martin, Corvette

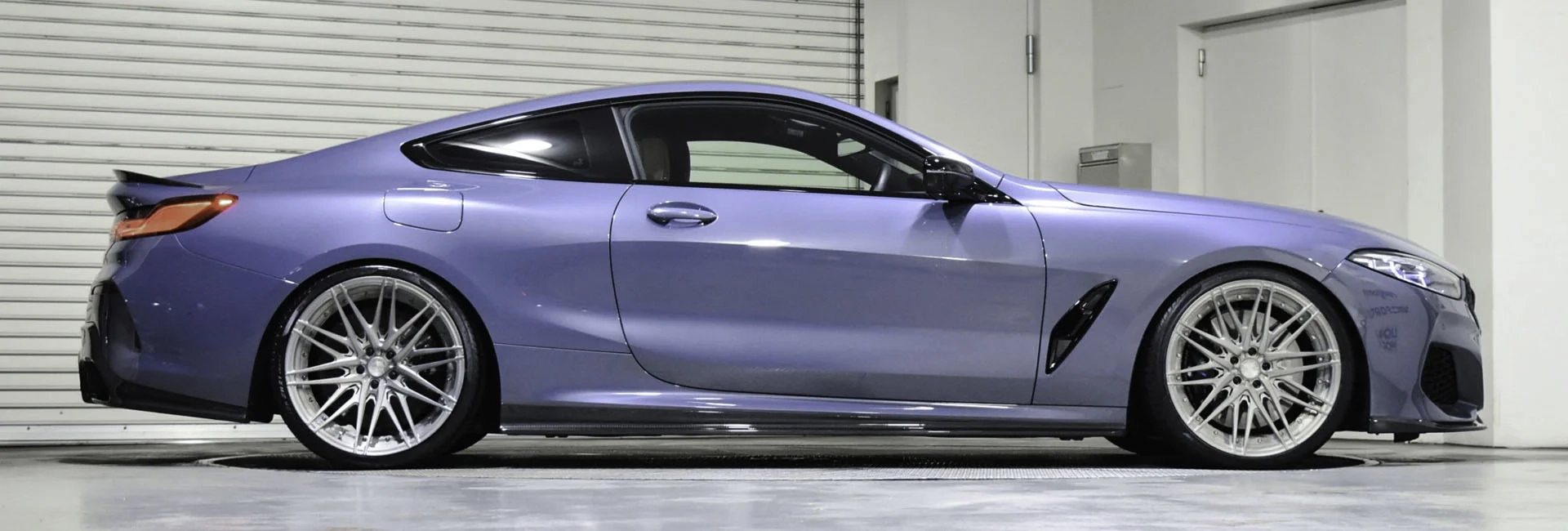

The ADV10.0 M.V2 has been fitted to Porsche 992 911 Turbo S and GT3, Audi R8 V10 Spyder, BMW M3 Competition and M4 CSL, Chevrolet Corvette C8 Z06, Ford Shelby GT500, and Aston Martin Vantage AMR. The fan-spoke pair geometry scales proportionally from 18-inch coupe fitments through 22-inch wide-body configurations, maintaining consistent spoke-to-aperture ratios across the diameter range.

ADV.1 ADV10.0 M.V2 - Any Vehicle, Any Specification

The ADV10.0 M.V2 can be produced for any vehicle in any diameter, width, offset, bolt pattern, center bore, and finish. Contact Hodoor Wheels with your vehicle make, model, and year for a confirmed specification and build quote.
